Steel pipe blasting machine

  • Steel pipe shot blasting & coating machine
Steel pipe shot blasting & coating machine

Steel pipe shot blasting & coating machine

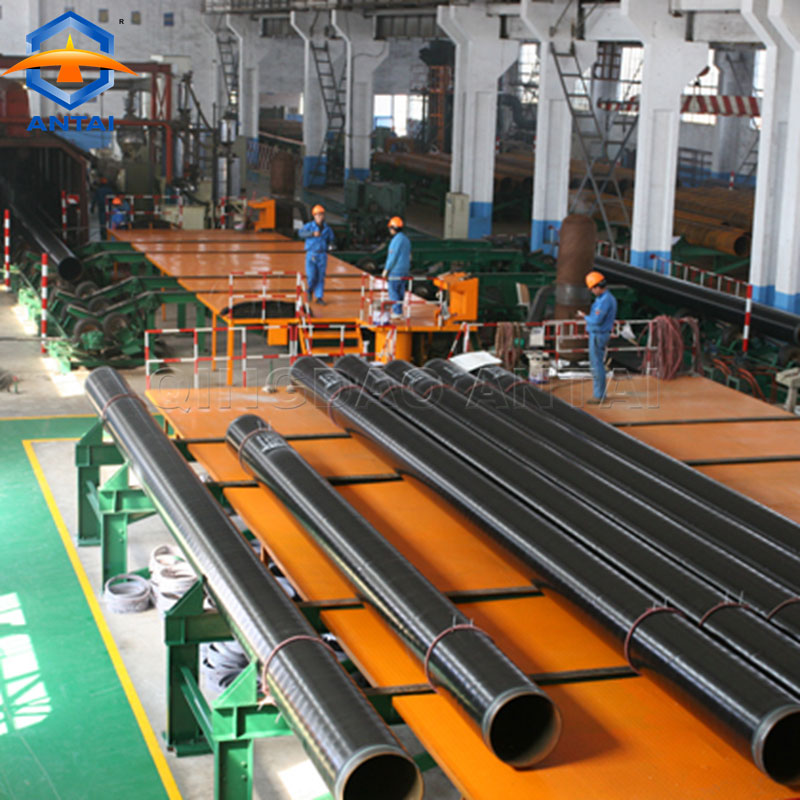

The layer equipment produced by our company is mainly used for oil pipelines, water pipelines, natural gas and other steel pipelines.

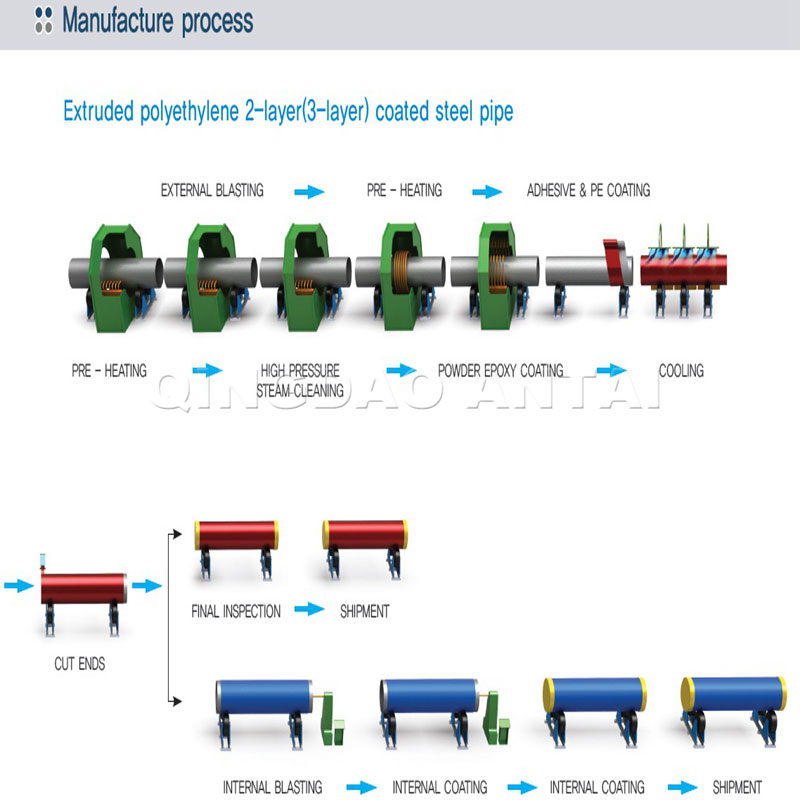

3PE anti-corrosion coating is suitable for pipeline protection with complex terrain and serious corrosion. In the construction of oil fields, 3PE anti-corrosion pipe has been used in domestic oil fields for its advantages of high chemical resistance, excellent mechanical protection, and long service life. The application of water and gas transmission projects is dominant.

IF the pipe heating induction heater for coating  characteristics
1. High heating speed, less oxidation decarburization
Due to the principle of electromagnetic induction heating, the heat inside the workpiece itself, fast heating, the heating way so few oxidation, high heating efficiency, process repeatability.
2. High automation, which can realize full automatic operation
Selects the automatic feeding and automatic discharge sorting device, deserve to go up in our company is special control software, but to achieve automatic operation.
3. Uniform heating, high precision of temperature
Easy implementation plan heat evenly, core temperature difference is small.Application of temperature control system can realize accurate control of temperature.
4. Simple induction furnace replaced
According to different machining dimensions, the configuration of different specifications of the induction furnace design with water, electrical fast conversion connector, furnace replacement is simple, fast and convenient.
5. Low energy, no pollution
Induction heating compared with other heating mode, high heating efficiency, low energy consumption, no pollution;All the indexes can meet user requirements.Heating conditions, by have heated to 1250 ℃ tons of power consumption is less than 380 degrees.Have lower costs than use natural gas or coal to heat, and can improve working conditions for workers.

QGW the steel pipe outer wall shot blasting machines

Item

Model

QGW10

QGW15

QGW20

QGW25

QGW30

QGW140

QGW200

Abrasive flow rate

Kg/min

2*250

2*250

2*250

2*250

2*250

2*830

2*1200

Liliting amount elevating conveyor

Kg/min

30000

30000

30000

30000

30000

1200000

1200000

Separating amout of separator

Kg/min

30000

30000

30000

30000

30000

1200000

1200000

Ventilation capacity

M3/h

5000

5000

5000

6000

6000

10000

120000

Power

kw

50

50

50

50

50

115

127
